Hathaway

Reciprocating Coders

	Ideal for everything from date codes to logos, nutritional facts, safe handling instructions to product descriptions Cycle speeds up to 75 per minute applicable to virtually any substrate Easily adaptable to different products Utilizes 2" x 2", 2" x 4" or 4" x 4" printers Uses low cost disposable ink cartridges State of the art INKAP printhead Dual control air cylinders Pneumatic controls activated with a foot switch or optional photo eye.

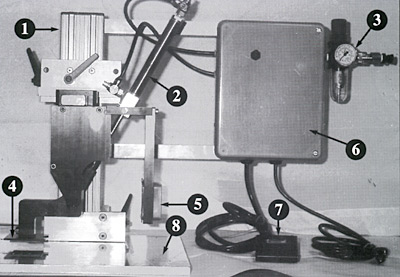

1. 18" HIGH BRACKET 2. AIR CYLINDER 3. AIR PRESSURE GAUGE 4. PRINT HEAD 5. INK CARTRIDGE 6. CONTROL BOX 7. FOOT PEDAL 8. BASE PLATE
Hathaway offers an ideal solution for coding applications that cannot be done in-line. The table-top unit will print any number of different products no matter what size, shape or material. It's portable and adjustable to allow you to print dates, logos, prices or any other information you may require. We can also design specific features for any particular product you may have. The dual flow controls and large air cylinder used on all printers provide for a smooth consistent stroke which will not be affected by fluctuations in air pressure. In addition, all Hathaway printers feature the remarkable INKAP printhead which monitors ink absorption and print consistency while extending cartridge life. This is truly your most reliable, cost effective printing solution.
SAMPLE IMPRESSIONS:
TECHNICAL DATA Print Technology: Reciprocating Wet Ink Print Area: 1.75" Diameter Model VRP 200; 2" x 2" Square Model VRP 400 Print Speed: up to 75 cycles per minute Power: 110 VAC/220 50Hz (optional) Compressed Air: 30 PSI Signal: Foot Switch, Photo Electric (optional) Ink Cartridge: V-2010 (round), V-4010 (square) Ink colors: Black, Blue, Red, White, Yellow Type: Ribbed Type
*Click to contact us for additional info*

The Hathaway family of companies...your source for virtually any identification product:
